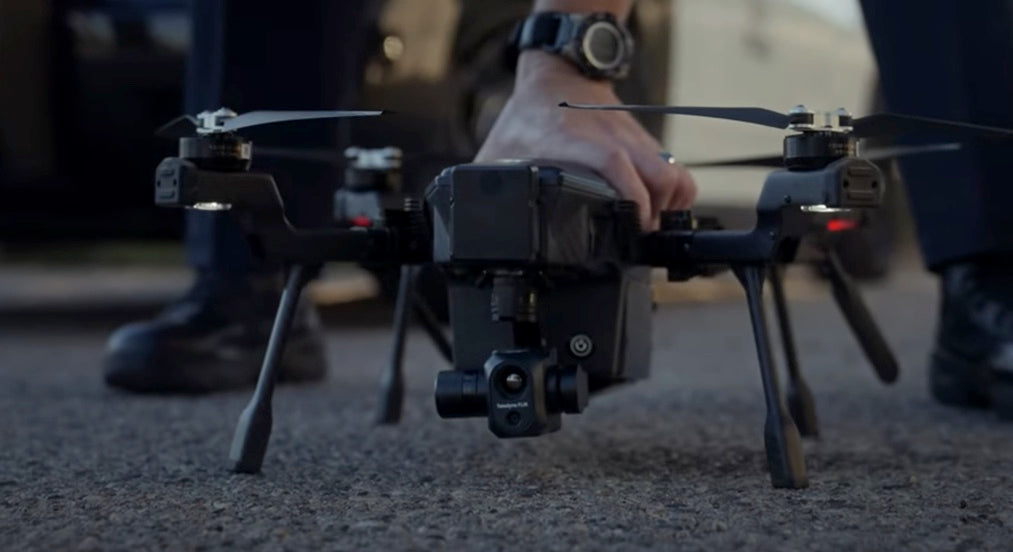

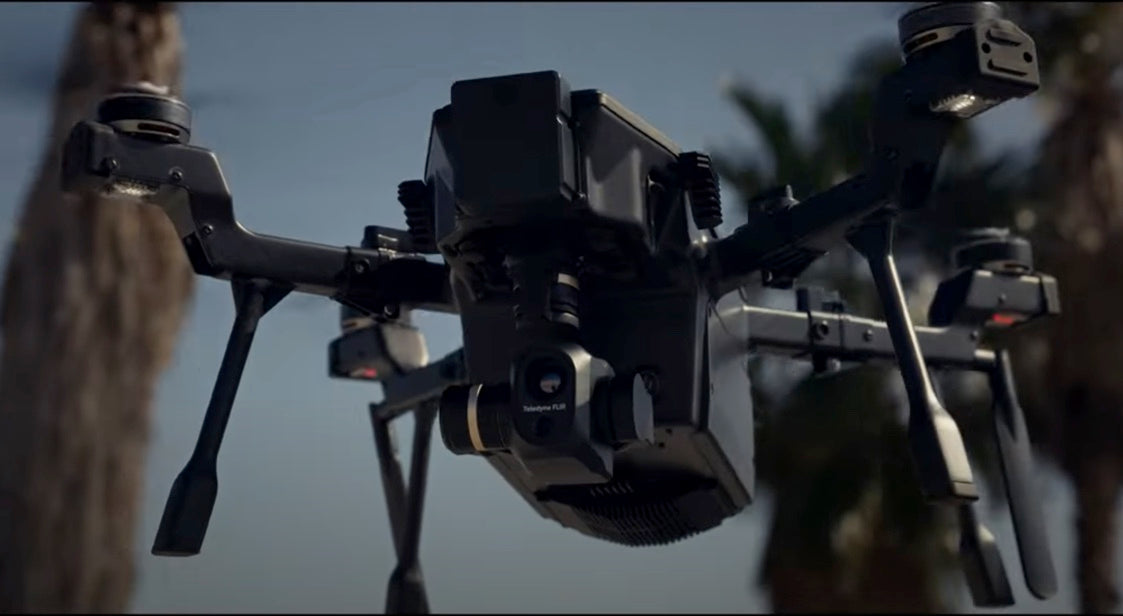

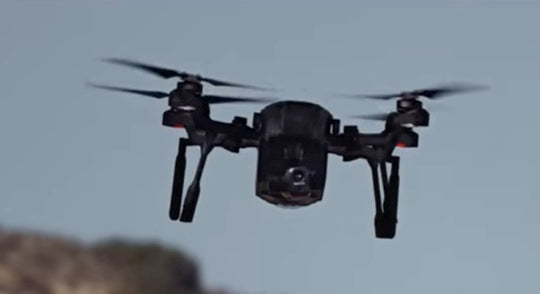

Teledyne FLIR SIRAS Professional Drone With Thermal and Visible Camera Payload

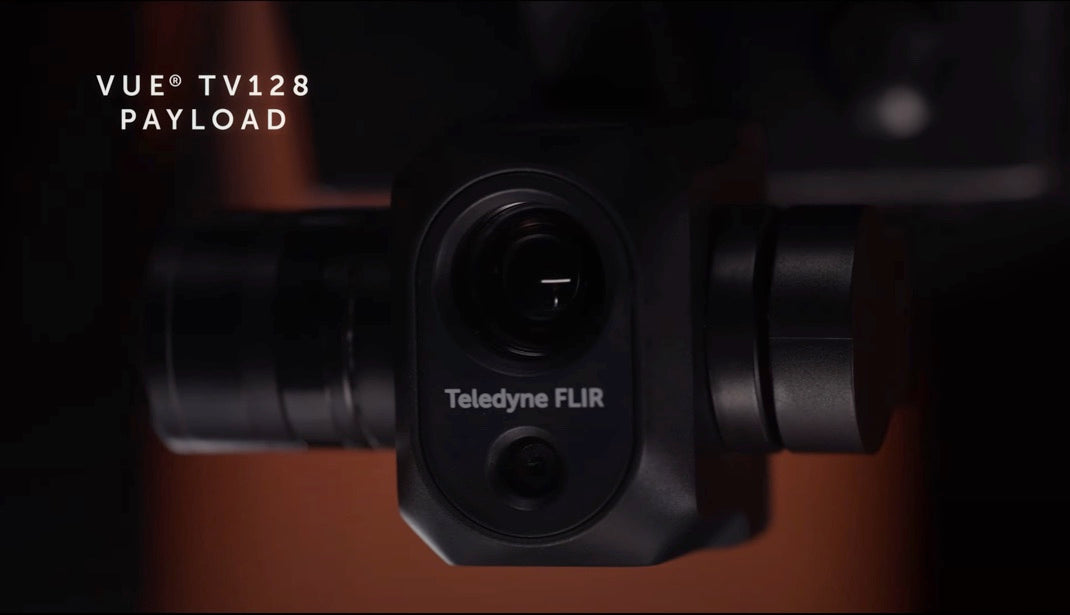

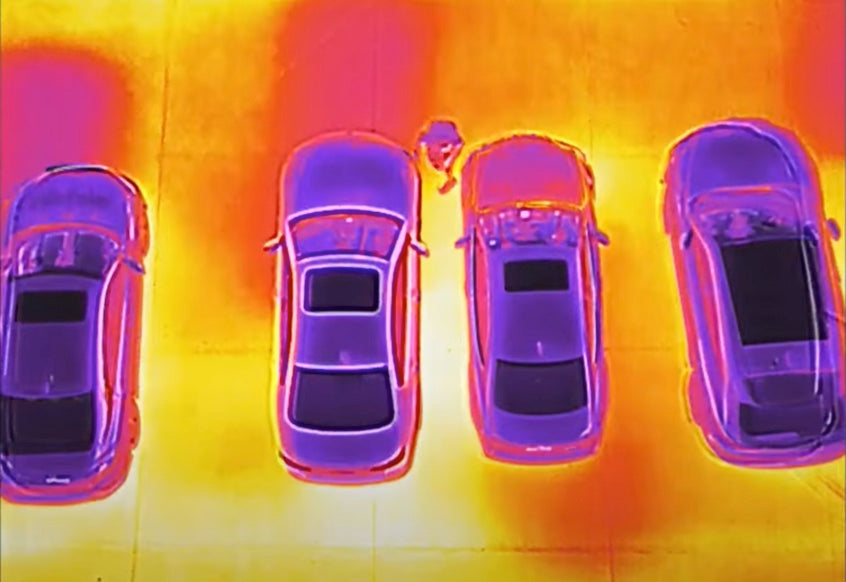

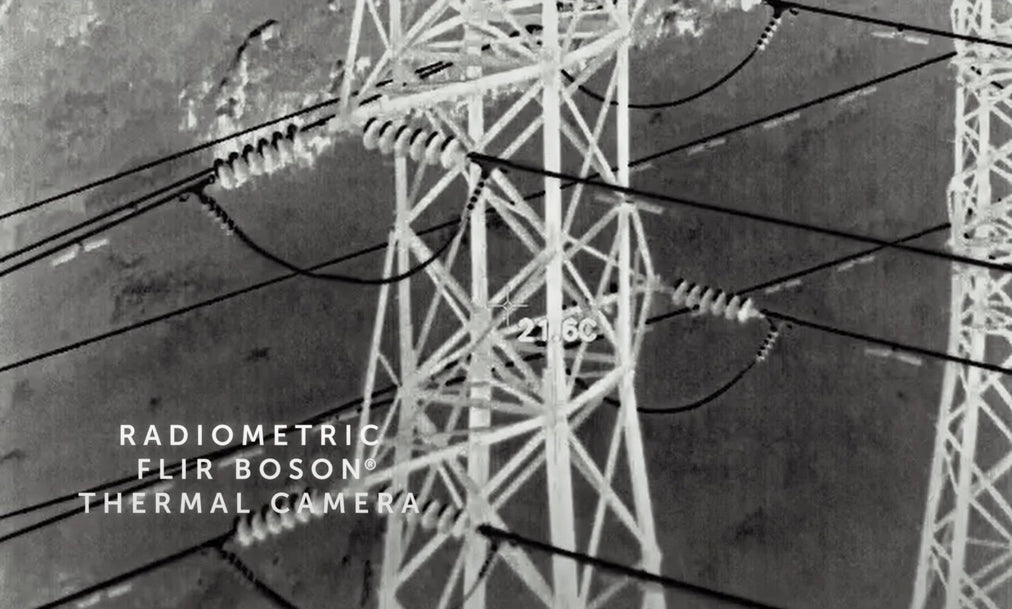

SIRAS is an affordable, easy-to-fly, IP54-rated professional drone with an interchangeable payload system for industrial and utilities inspection, firefighting, law enforcement, and search and rescue missions. With front collision avoidance, hot swappable batteries, a 31-minute flight time, and no restrictive geofencing, professional UAV pilots can fly safely when and where the mission demands. The quick-connect Vue TV128 payload features patented MSX® technology, adding visible-light outlines to thermal imagery to provide critical information in real time. The 16MP visible camera delivers clear, pinpoint details with a 128x zoom. A 640x512-pixel, radiometric FLIR Boson provides sharp thermal imagery, 5x digital zoom, accurate temperature-measurement, and compatibility with FLIR Thermal Studio analysis software.

Specifications:

• Weight (takeoff): 4.1 lbs
• Folded: Approx. 11.8 x 9.1 x 3.9 inches.
• Unfolded: Approx. 26.8 x 23.6 x 3.9 inches (including propellers)

Flight Performance

• Maximum Flight Time: 31 minutes
• Operating Altitude: Up to 13,123 ft

Take Off Readiness: 1-minute after power ON

Geo-Fencing: None

Return To Home: Yes

Disconnect Return to Home: Yes

Hover Accuracy: +/- 1.5m horizontal, +/- 0.5m vertical

Operating Environment: 14⁰F to 104⁰F

Maximum Ground Speed: 40 mph

Default Ground Speed: 13.4 mph

Wind Resistance: 11.1 mph

Maximum Ascent Speed: 13.4 mph

Maximum Decent Speed: 8.9 mph

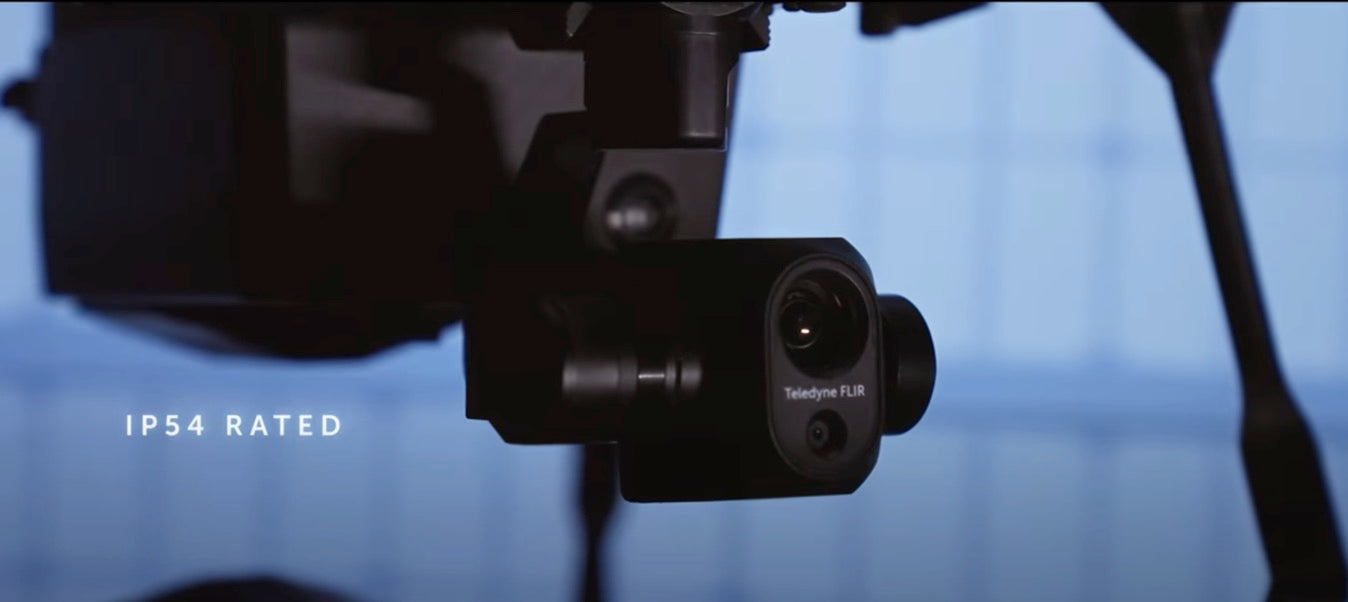

Ingress Protection: IP 54

Foldable Props: Yes, quick connect

Night Flight Beacons: Yes (red and white), on/off & blink options

Collision Avoidance: Front Facing Radar: up to 30m, when flying <5m/sec speed, HFOV: 100⁰, VFOV: 38⁰ and Ground detection via underside sensors

Imaging & Optical:

EO Camera Resolution: 16 MP with 20MP mapping mode, 2MP at 32x zoom

EO Video Speed: 1080

IR Camera Resolution: 640 x 512, radiometric (spot meter, isotherms, ROI)

IR Video Frame Rate: 60 H

Digital Zoom: 20x for both EO and IR

FLIR MSX: Yes

Gimbal:

• Maximum Control Speed: 120⁰/sec
• Control Range: -90⁰ to 15⁰
• Control Accuracy: +/- 0.02⁰

• Sensor Type: FLIR Boson thermal sensor.
• Resolution: 640 x 512 pixels.
• Temperature Range: Detects -4°F to 752°F (-20°C to 400°C).
• Field of View (FOV): Approx. 24° horizontal.
• Frame Rate: 30 Hz.

Remote Controller & Transmission:

Operating Frequency: Dual Ban: 2.4 GHz / 5.8 GHz

Operating Distance: 6 miles

Layout: Mode 2

Display Latency: <1 sec

Transmission Quality: 720P, 30 fps

Display Brightness: 1,000 lumens

Built-in Battery: 90-minute

Number of Batteries: 1

Battery:

20% Battery Warning: Yes, visual and audio signal

10% Battery RTH: Yes

Hot Swappable Batteries: Yes

Maximum Flight Time: 31 minutes (Dependent on (Dependent on use))

Maximum Hovering Time: 28 minutes (Dependent on (Dependent on use))

Battery Energy: 6,000 mAh*2

Type: LIPO 4S

Charging Temperature Range (°F): 41⁰F to 122⁰F

Storage Temperature & Humidity Room temperature and <70% is recommended

Recommended Storage Temperature: Room temperature

Max Charging Current (A): 6 amps

Charging Time: 45-minutes

Storage: SD Storage - 64GB SD Card provided with aircraft. 1GB Internal Storage

What's in the box?

• 1x SIRAS drone
• 1x Controller with built-in screen
• 2x Intelligent Batteries
• 1x Battery charger
• 1x soft case
