Autel EVO Max 4N

Autel EVO Max 4N

$15,500.00 USD
$16,385.00 USD $15,500.00 USD
Sale Sold out

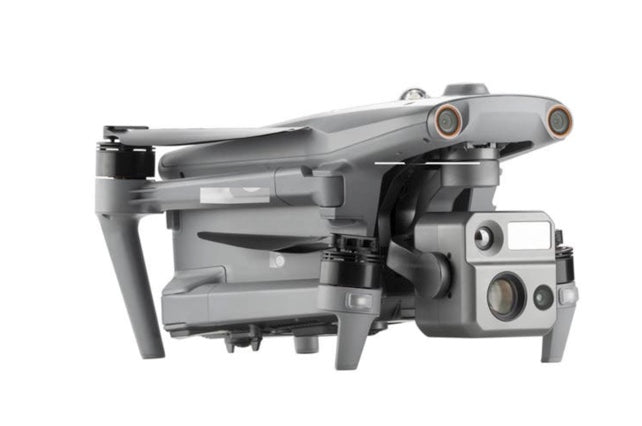

Autel EVO Max 4N

Autel EVO Max 4N presents an entirely new level of potential for users, pushing the boundaries on what is achievable with drones. It features powerful technologies and advanced autonomy to navigate complex environments in real-time with 3D flight paths.

Perform unprecedented obstacle avoidance maneuvers as well as open up opportunity for flights without GPS signal--all while keeping a foldable, weather-resistant design for unbeatable portability. And now it's even easier to identify and track objects thanks to its cutting-edge thermal payload!

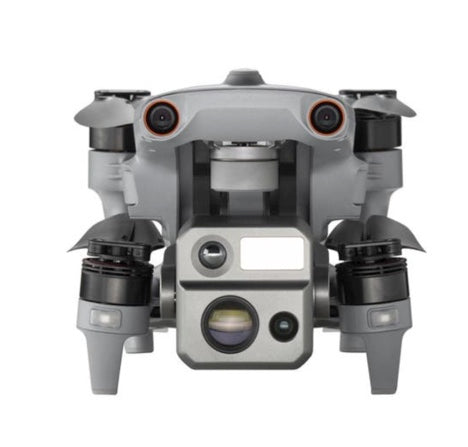

The EVO Max 4N is equipped with a detachable payload perfect for multiple use cases. Two screws remove the payload, making for quick repairs, swaps, or upgrades. But the best about it are the following components:

STARLIGHT CAMERA

Explore the night with targets locked and tracked. This 2.3MP camera lets you shoot in low-light environments with clarity and in detail.

WIDE CAMERA

This 50MP camera can capture 4K 30fps videos with max ISO of 64000. The Moonlight Algorithm 2.0 boosts post-processing and allows you to capture crisp, detailed images in low-light environments. Expect reduced noise and enhanced HDR in photos.

THERMAL CAMERA

This 640x512 high-resolution thermal imaging camera supports 30fps videos and 16x digital zoom.

LASER RANGEFINDER

This allows you to get the coordinates and altitude of a target from up to 0.75 miles away just with a tap on the RC screen.

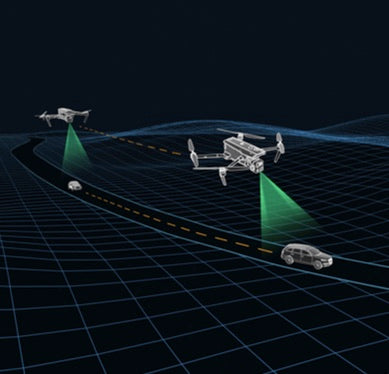

The Autonomy Engine from Autel gathers environmental data from the immediate area and designs 3D flying pathways through challenging terrain including mountains, woods, and structures. Rapid 3D scene reconstruction, public safety surveillance, industrial inspection, and land surveying are examples of use cases.

The EVO Max 4N can navigate in areas without GPS, underground, or inside of fortified structures thanks to its advanced sensors. The EVO Max 4N can achieve high-altitude tracking and data collecting for law enforcement thanks to Autel's AI recognition technology, which enables it to instantly recognize and latch onto a variety of objects like heat sources, moving persons, or moving vehicles. The EVO Max 4N can achieve high-altitude tracking and data collecting for law enforcement thanks to Autel's AI recognition technology, which enables it to instantly recognize and latch onto a variety of objects like heat sources, moving persons, or moving vehicles.

Made for multiple industries and use cases

The Autel EVO Max 4 is designed to be used by multiple industries for various use cases.

LAW ENFORCEMENT

  • Subject monitoring & tracking
  • General reconnaissance & intel gathering
  • Disaster response
  • Scene photography and reconstruction
  • Pre-planning & situational response



Specifications:

Aircraft

  • EVO Max 4T Weight: 3.57 lbs
  • EVO Max 4N Weight: 3.62 lbs
  • Max. Takeoff Weight: 4.41 lbs

Dimensions:

  • Unfolded (incl. propellers): 22.13 × 25.63 × 5.79 in

  • Unfolded (excl. propellers): 12.52 × 15.75 × 5.79 in

  • Folded (excl. propellers): 10.12 × 5.71 × 5.16 in

  • Diagonal Wheelbase: 5.02 ft

Speed:

  • Max Ascent Speed: 26.25 ft/s
  • Max Descent Speed: 19.69 ft/s
  • Max Horizontal Speed: 75.46 ft/s (51.97 mph)
    (Ludicrous Mode in EU regions: 62.34 ft/s or 42.51 mph)

Altitude and Flight Time:

  • Max Takeoff Altitude: 13,124 ft
  • Max Flight Time: 42 minutes
  • Max Hovering Time: 38 minutes
  • Max Wind Resistance: 27 mph

Other Specifications:

  • IP Rating: IP43
  • Max Tilt Angle: 35°
  • Max Angular Velocity: Pitch: 300°/s, Yaw: 120°/s
  • Operating Temperature: -4°F to 122°F
  • Internal Storage: 128 GB, with 64 GB usable space

Operating Frequencies:

  • Frequencies: 2.4 GHz / 5.8 GHz
    • 5.2 GHz (FCC/CE/UKCA)
    • 900 MHz (FCC)
Cameras

Wide-Angle Camera:

  • Sensor: 1/1.28 CMOS, 50 MP
  • Focal Length: 4.5 mm (23 mm equivalent)
  • Field of View (DFOV): 85°
  • Max Video Resolution: 3840 × 2160 (4K)
  • Max Photo Resolution: 4096 × 3072

Thermal Cameras (4T and 4N):

  • Infrared Temperature Range:
    • -4°F to 302°F
    • 32°F to 1022°F

Zoom Camera (Telephoto):

  • Sensor: 1/2" CMOS, 48 MP
  • Focal Length: 11.8–43.3 mm (64–234 mm equivalent)
Battery
  • Capacity: 8070 mAh
  • Voltage: 14.88 V
  • Battery Weight: 1.15 lbs
  • Charging Temperature: -4°F to 113°F
  • Energy: 120 Wh

Gimbal

  • Mechanical Range:
    • Pitch: -135° to 45°
    • Yaw: -45° to 45°
    • Roll: -45° to 45°
  • Stability System: 3-axis gimbal

Laser Range Finder

  • Measuring Range: 16.4 ft to 3,937 ft
  • Accuracy: ±(3.28 ft + D×0.15%)

Obstacle Sensing Systems

Visual Sensing Ranges:

  • Forward: 19.7–1,220.5 in (0.5–31 m)
  • Backward: 19.7–984.3 in (0.5–25 m)
  • Upward: 7.87–85.3 ft (2.4–26 m)
  • Downward: 11.8–75.5 ft (3.6–23 m)

 What's in the box?

  • Autel Robotics EVO Max 4N Drone
  • Smart Controller V3 with Sticks
  • Battery
  • Propeller
  • Gimbal
  • Gimbal Cover
  • 64GB SD Card
  • Battery Charger and Power Cable
  • 2x Pair of Spare Propeller
  • Screwdriver
  • 4x Screws
  • Smart Controller Lanyard
  • Smart Controller Cover
  • 2x Smart Controller Spare Joystick
  • RC Charger
  • RC Charging Cable
  • Data Cable
  • Rugged Case
  • User Manual
  • Autel Robotics 1 Year Limited Warranty
