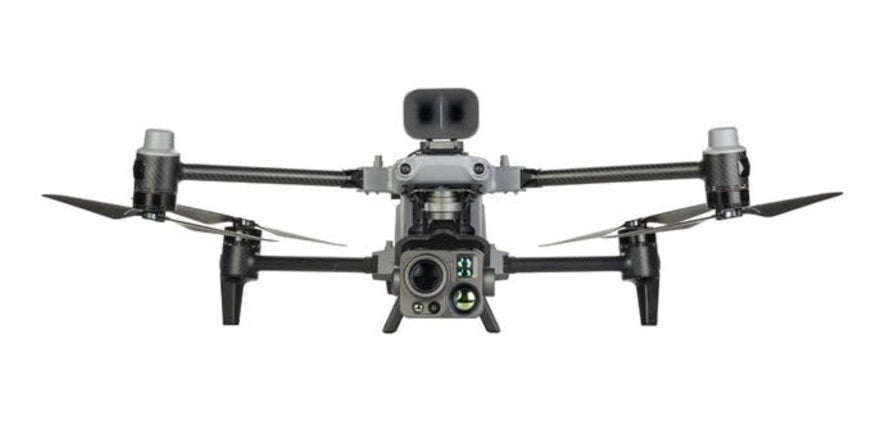

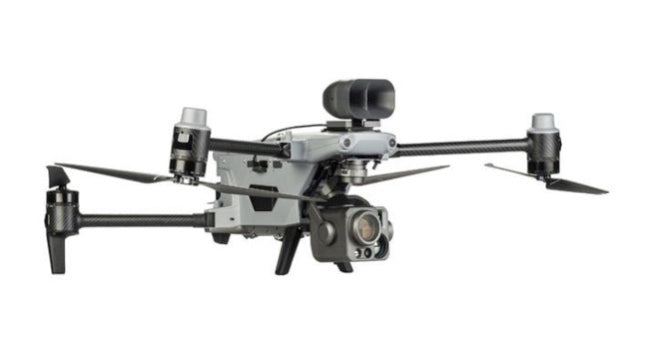

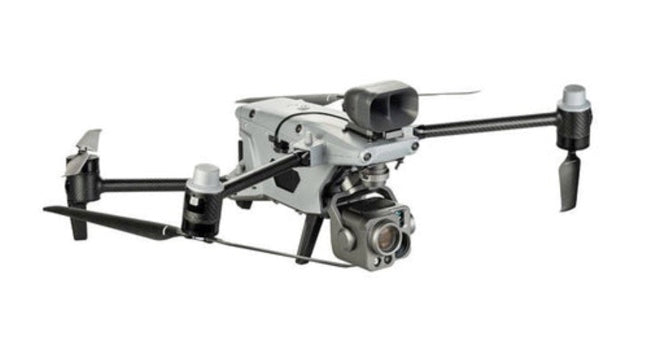

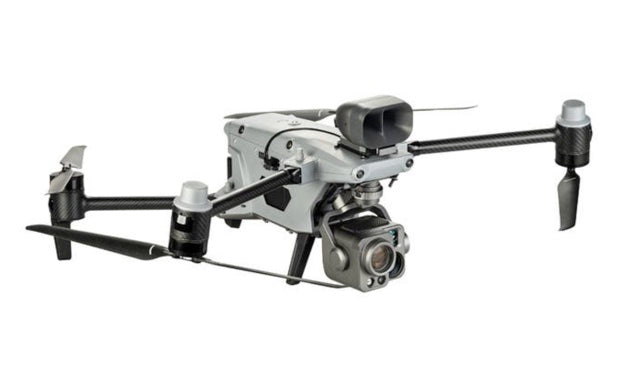

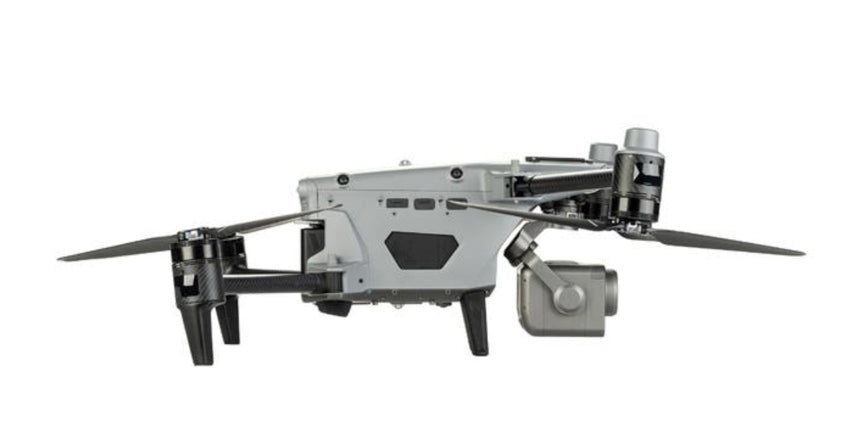

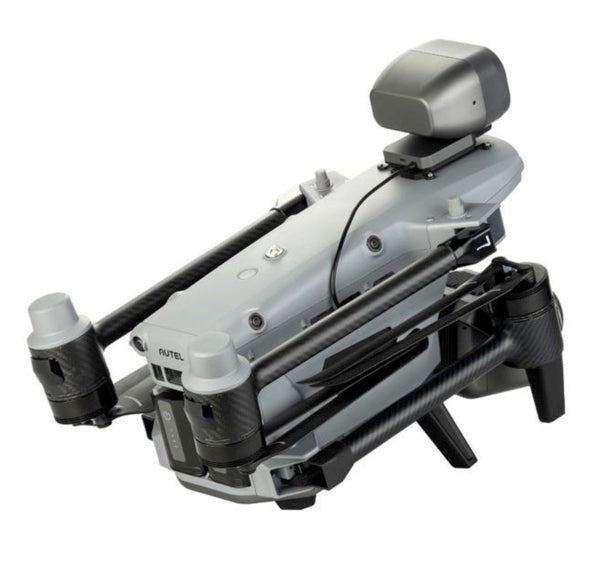

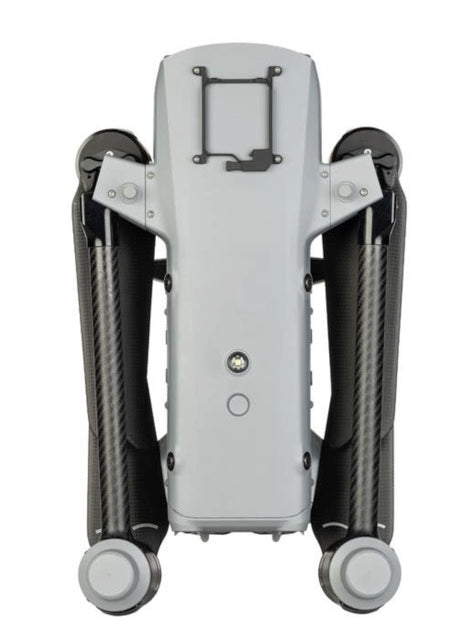

Autel Alpha with L35T with Gimbal

Autel Alpha with L35T with Gimbal

Autel Alpha, the all-new, highly anticipated enterprise-level UAV from Autel Robotics is finally here. Complex engineering simplified to cater to the advanced needs of professional sectors, the Autel Alpha has captured attention at the June 2023 Energy Drone and Robotics Summit. Add the recent FCC approval and you have the ultimate Autel Alpha UAV with exceptional features dancing to your tunes.

RANGE AND ENDURANCE

Weighing as light as 13.5 pounds, Autel Alpha boasts of a whopping 12.5 mile transmission range and an optimal flight time of 40 minutes letting you enjoy extreme connectivity and smart power management. Autel Alpha can hover for full 38 minutes  aiding in critical search and rescue operations.

WEATHER RESISTANT

Come rain or shine, the IP55 weather proofing rated Autel Alpha is ready to take off in all weather conditions. With an operating temperature range of -20℃ to +50℃ this UAV captures stunning images and videos from snowy peaks to sun kissed beaches and rainy marsh lands.

CAMERA AND IMAGING SUITE

Loaded with multiple cameras tailor-made for various professional applications, Autel Alpha comes with a primary 1/2" CMOS wide camera sensor with 48MP, a 24mm equivalent lens and an f/2.8 aperture with an ISO of up to 6400 for photos and 64000 for videos, capturing in JPG, DNG, MP4 and MOV formats.

Alpha's Zoom Camera comes with a 1/1.8" CMOS sensor with 48 MP, 1-35X optical zoom and up to 560X digital zoom. With a variable aperture lens and wide ISO range, Autel Alpha is crafted for aerial surveillance.

Augmenting the purpose of UAV to the next level, Autel Alpha boasts of 2 Thermal Cameras, Wide and Tele, which use uncooled VOx Microbolometers operating a temperature range of -20℃ to +50℃, making this the most ideal robot drone for industrial inspections and emergency operations.

720-DEGREE OMNI DIRECTIONAL DETECTION

Autel Alpha comes with a 360-degree obstacle detection which is rightly supported with its ultra-tech 720-degree omni directional detection. Cleverly dodging aerial disturbances from all directions, this UAV operates on 2.4/5.2/5.8 GHz frequency bands and clocks speeds of 24 m/s even as it resists winds up to 15 m/s.

SATELLITE NAVIGATION

From tracking locations to counting objects to advanced search and rescue operations, Autel Alpha AI uses GPS, GLONASS, BeiDou and Galileo to keep track of people, vehicles, boats and other things that may interest you.

SAFETY FEATURES

Perfected for emergency operations, Autel Alpha includes enhanced anti-interference capabilities with AES-256 encryption for anti-jamming. Compatible for multiple payloads Autel Robotics guarantees safety and reliability to your sensitive operations.

Specifications:

• Weight (with battery and gimbal): Approximately 13.77 pounds.
• Maximum Takeoff Weight: Approximately 18.5 pounds.
• Diagonal Wheelbase: Approximately 32 inches.
• Maximum Flight Time (in windless conditions): Up to 40 minutes.
• Maximum Hovering Time (in windless conditions): Up to 38 minutes.
• Maximum Horizontal Speed (in windless conditions near sea level): Approximately 55.9 mph.
• Maximum Wind Resistance: Approximately 26.8 mph.
• Hovering Accuracy:
  • Vertical: ±0.33 feet (with vision systems active); ±0.98 feet (with GNSS active).
  • Horizontal: ±0.49 feet (with vision systems active); ±0.98 feet (with GNSS active).
• Ingress Protection (IP) Rating: IP55, indicating protection against dust and low-pressure water jets.
• Operating Temperature Range: -4°F to 122°F.
• Global Navigation Satellite Systems (GNSS): Supports GPS, GLONASS, BeiDou, and Galileo.

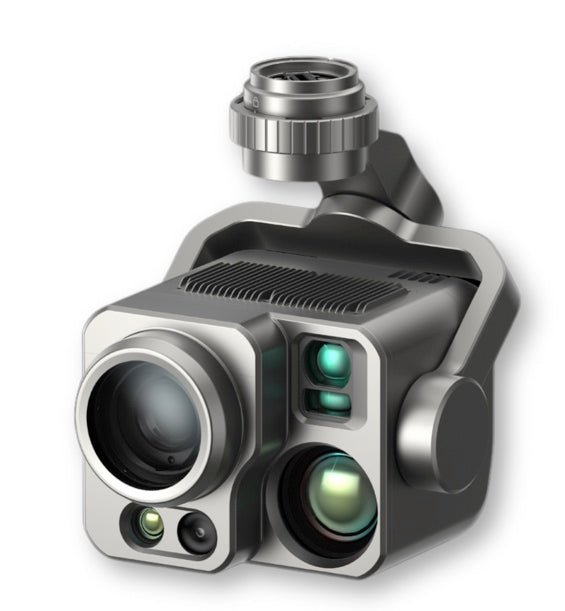

DG-L35T Gimbal Specifications:

• Wide Camera:

  • Sensor: 1/2-inch CMOS with 48 megapixels.
  • Equivalent Focal Length: Approximately 0.94 inches.
  • Aperture: f/2.8.
  • Focusing Distance: 3.28 feet to infinity.
  • ISO Range: 100 to 3200.

• Zoom Camera:

  • Sensor: 1/1.8-inch CMOS.
  • Optical Zoom: Up to 35x.
  • Hybrid Zoom: Up to 560x.
  • Ultra-Sensitive Starlight Vision: Supports ISO up to 160,000 for low-light conditions.

• Laser Rangefinder:

  • Measurement Range: Approximately 32.8 feet to 1.24 miles.
  • Measurement Accuracy: ±3.28 feet plus 0.15% of the distance.

• Wide Thermal Camera:

  • Resolution: 640 x 512 pixels.
  • Focal Length: Approximately 0.51 inches.
  • Aperture: f/1.2.
  • Temperature Measurement Ranges: -4°F to 302°F; 32°F to 1,022°F.
  • Temperature Measurement Accuracy: ±5.4°F or ±3% of reading (whichever is greater) within ambient temperatures of -4°F to 140°F.

• Tele Thermal Camera:

  • Resolution: 640 x 512 pixels.
  • Focal Length: Approximately 1.77 inches.
  • Aperture: f/1.2.
  • Digital Zoom: Up to 56x.
  • Temperature Measurement Ranges: -4°F to 302°F; 32°F to 1,022°F.
  • Temperature Measurement Accuracy: ±5.4°F or ±3% of reading (whichever is greater) within ambient temperatures of -4°F to 140°F.

What's in the Box:

1 x Autel Alpha

1 x L35T Gimbal

1 x Instruction Manual
